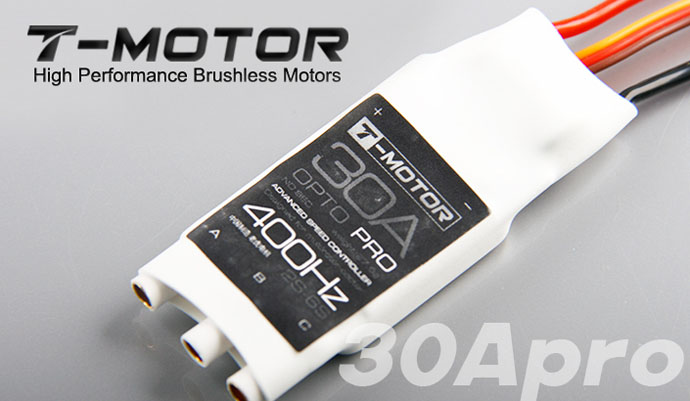

ESC30A pro
Output: Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
BEC: NO-BEC.
Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
Size: 55mm (L) * 25mm (W) * 12mm (H).
Weight: 31g.
Features:
3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
Throttle range can be configured to be compatible with all transmitters currently available on market.
Smooth, linear, quick and precise throttle response.
Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
The output of the built-in BEC is switchable by user programming (5.25V or 6.0V).
With governor mode for helicopter.
USB supported. The firmware of the ESC can be updated by the USB adapter.
Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.
